The Lifesaving 5-Minute Trick: Choosing and Fitting a Winter Pinlock Visor

The Lifesaving 5-Minute Trick: Choosing and Fitting a Winter Pinlock Visor

The morning air bites sharp through your mesh collar, and within three stops, your vision goes completely white. You crack your shield, but the freezing rain blasts your eyes. Every winter rider knows the nightmare of a fogged-up helmet. While anti-fog sprays and open vents promise relief, they always fail when the temperature drops to zero. There is only one real solution to mechanical blindness in winter: the dual-pane pinlock insert.

Understanding the Anti-Fog Magic

A pinlock insert is not just a piece of plastic stuck to your shield. It works exactly like a double-glazed window in a house. The soft silicone seal around the edge creates a pocket of completely trapped air between the colder outer shield and the warmer air from your breath. This thermal barrier prevents the moisture in your breath from condensing into a blinding layer of mist.

Choosing Your Tint Color

Most riders defaults to a clear insert, but winter riding introduces unique lighting challenges. Low-hanging winter sun and heavy grey overcast skies require specific contrast.

Clear inserts are the best for universal, all-weather night riding.
Yellow inserts enhance contrast dramatically in flat light, fog, or heavy winter mist.
Smoke or dark tints are brilliant for bright, snowy days but become highly dangerous the second the sun dips below the horizon.

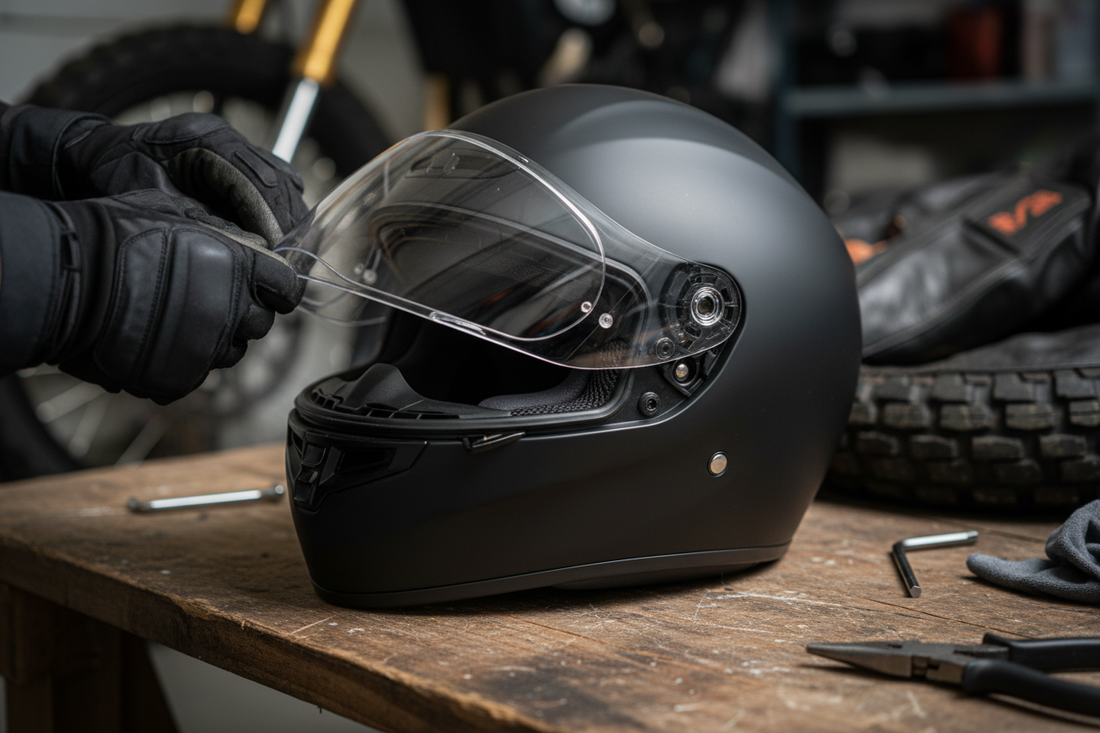

The Step-by-Step Installation Secrets

Installing your insert incorrectly will ruin the silicone seal, scratching your expensive visor and letting fog creep inside.

Step 1: Clean everything completely. Use warm water and mild dish soap to wash the interior of your main visor. Dry it with a virgin microfiber cloth. A single speck of dust trapped inside will drive you crazy on the highway.

Step 2: Flatten the curve. Remove your main visor from the helmet. Flex the visor outward until it is almost flat. This is scary the first time, but motorcycle plastics are incredibly flexible. Flattening the shield opens up the distance between the two plastic locator pins.

Step 3: Drop the insert into place. Align the grooves of the pinlock insert with the locator pins on the visor. Make sure the raised silicone seal is facing directly against the interior of the main visor.

Step 4: Release the tension. Slowly let the main visor return to its natural curved shape. You will hear a soft snap as the visor clamps tightly down around the silicone edge of the insert.

How to Check the Seal

Hold the visor up to a light source and look closely at the silicone boundary. If you see any gaps, your pins need adjustment. The locator pins on your helmet are actually eccentric cams. You can rotate them slightly using a small screwdriver or a coin to push the pin inward, increasing the tension on the insert and locking out the winter humidity for good.
